ARR-244i
|
Model: ARR-244i
24" Wide with 4 Burner Residential Range
Shown with optional 4" stub back.
STANDARD FEATURES
Innovection™ Convection System – utilizing dual convection
motors which provide superior baking performance
Oven Functions
Convection Bake, Dehydrate and Defrost
Standard Bake and Broil
Industry’s largest oven cavity at 3.71 cu. ft.
30,000 BTU hidden bake oven burner
15,500 BTU Inconnel® banquet broiler burner produces 1,500°F
broiling temperatures
Commercial grade stainless steel construction and insulation
Commercial grade high temperature porcelain oven interior
Two oven lights
2 oven racks with 6 rack positions
|
Range Top

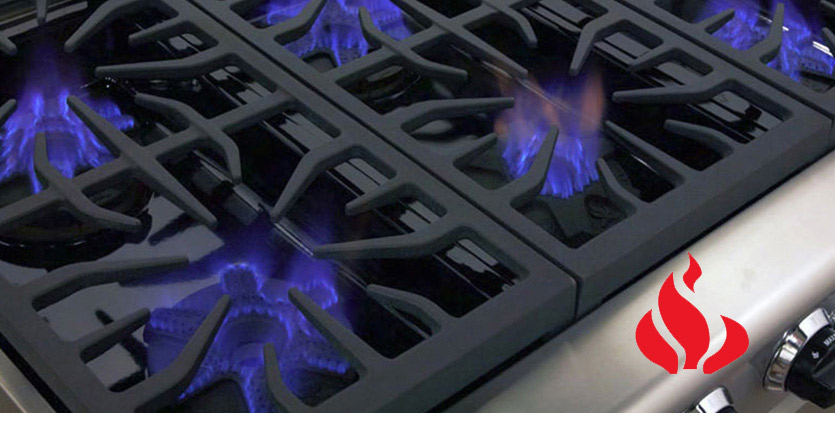

(2) 17,000 BTU, (1) 13,000 BTU, (1) 9,000 BTU sealed burners
Sealed burners simmer at 140°F, all with infinite setting controls
Sealed, one-piece, stainless steel burner top surface

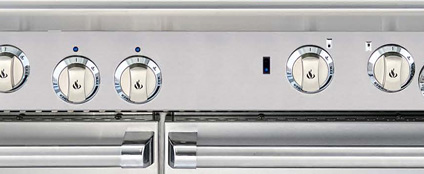

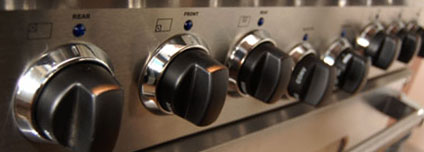

Child safe push-and-turn top burner controls
All top burners have flame sensing reignition in the event the flame goes out
Blue LED indicator lights for each burner
Continuous and flush commercial grade grates allow for easy
transferring of pots and pans across the entire cooking surface
Note: Choose 1" Island Back, 4" stub back or 20" high back with shelf.
|
|
| |
|
|
ARR-304i
[click here] for Spec Sheet
View Owner's Manual |
Model: ARR-304i
30" Wide with 4 Burner Residential Range
Shown with optional 4" stub back.
STANDARD FEATURES
Innovection™ Convection System – utilizing dual convection
motors which provide superior baking performance
Oven Functions
Convection Bake, Dehydrate and Defrost
Standard Bake and Broil
Industry’s largest oven cavity at 4.8 cu. ft. which
accommodates commercial grade baking sheets
30,000 BTU hidden bake oven burner
15,500 BTU Inconnel® banquet broiler burner produces 1,500°F
broiling temperatures
Commercial grade stainless steel construction and insulation
Commercial grade high temperature porcelain oven interior
Two oven lights
2 oven racks with 6 rack positions
|
Range Top
(2) 17,000 BTU, (1) 13,000 BTU, (1) 9,000 BTU sealed burners
Sealed burners simmer at 140°F, all with infinite setting ontrols
Sealed, one-piece, stainless steel burner top surface
Child safe push-and-turn top burner controls
All top burners have flame sensing reignition, in the event the
flame goes out
Blue LED indicator lights for each burner
Continuous and flush commercial grade grates allow for easy
transferring of pots and pans across the entire cooking surface
4" Riser
|
|
| |
|
|
ARR-364GRi
[click here] for Spec Sheet
View Owner's Manual
|
Model: ARR-364GRi
36" Wide Residential Range with 4 Burner and Grill
Shown with optional 4" stub back.
STANDARD FEATURES
Innovection™ Convection System – utilizing dual convection
motors which provide superior baking performance
Oven Functions
Convection Bake, Dehydrate and Defrost
Standard Bake and Broil
Industry’s largest oven cavity at 5.6 cu. ft. which
accommodates commercial grade baking sheets
30,000 BTU hidden bake oven burner
15,500 BTU Inconnel® banquet broiler burner produces 1,500°F
broiling temperatures
Commercial grade stainless steel construction and insulation
Commercial grade high temperature porcelain oven interior
Two oven lights
2 oven racks with 6 rack positions
|
Range Top
(3) 17,000 BTU, (2) 13,000 BTU and (1) 9,000 BTU sealed burners
Sealed burners simmer at 140°F, all with infinite setting controls
Sealed, one-piece, stainless steel burner top surface
Child safe push-and-turn top burner controls
All top burners have flame sensing reignition in the event the
flame goes out
Blue LED indicator lights for each burner
Continuous and flush commercial grade grates allow for easy
transferring of pots and pans across the entire cooking surface
4" Riser
15,000 BTU Grill Models ARR-364GRi
20,000 BTU Griddle Models ARR-36G4GDi
|
|
| |
|
|
ARR-486GDi
[click here] for Spec Sheet
View Owner's Manual
Installation Specifications
|

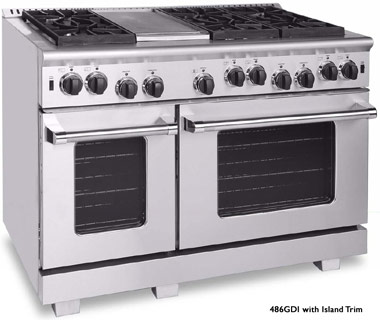

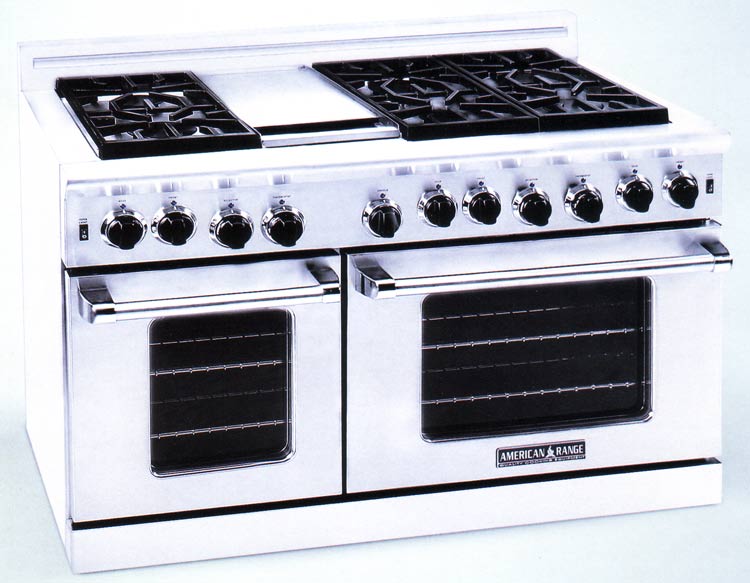

Model: ARR-486GDi
48" Wide Residential Range with 6 Burner and Griddle
Shown with optional 1" island back.
STANDARD FEATURES
Innovection™ Convection System – utilizing dual convection
motors which provide superior baking performance
Oven Functions
Convection Bake, Dehydrate and Defrost (Both Oven)
Standard Bake and Broil (Both Ovens)
(1) 30" oven and (1) 18" oven
Both ovens comprise the industry’s
largest oven cavity at
4.8 cu. ft. and 2.5 cu. ft. respectively
Accommodates commercial grade/size baking sheets
30,000 BTU hidden bake oven burner
15,500 BTU Inconnel® banquet broiler burner produces 1,500°F
broiling temperatures
Commercial grade stainless steel construction and insulation
Commercial grade high temperature porcelain oven interior
Two oven lights
2 oven racks with 6 rack positions
Note: Choose 1" Island Back, 4" stub back or 20" high back with shelf.
 |
Oven Dimensions:
18" Oven: 14.5"W x 19.5"D x 15.5"H
30" Oven: 26.5"W x 19.5"D x 15.5"H |
|
|
|
|
|
ARR-4842GRi
4 Burner 24" Grill |
|
ARR-4842GDi
4 Burner 24" Griddle |
|
ARR-484GDGRi
4 Burner Griddle & Grill |
|
ARR-486GRi
6 Burner Grill |
|
|
| |
|
|
|
|

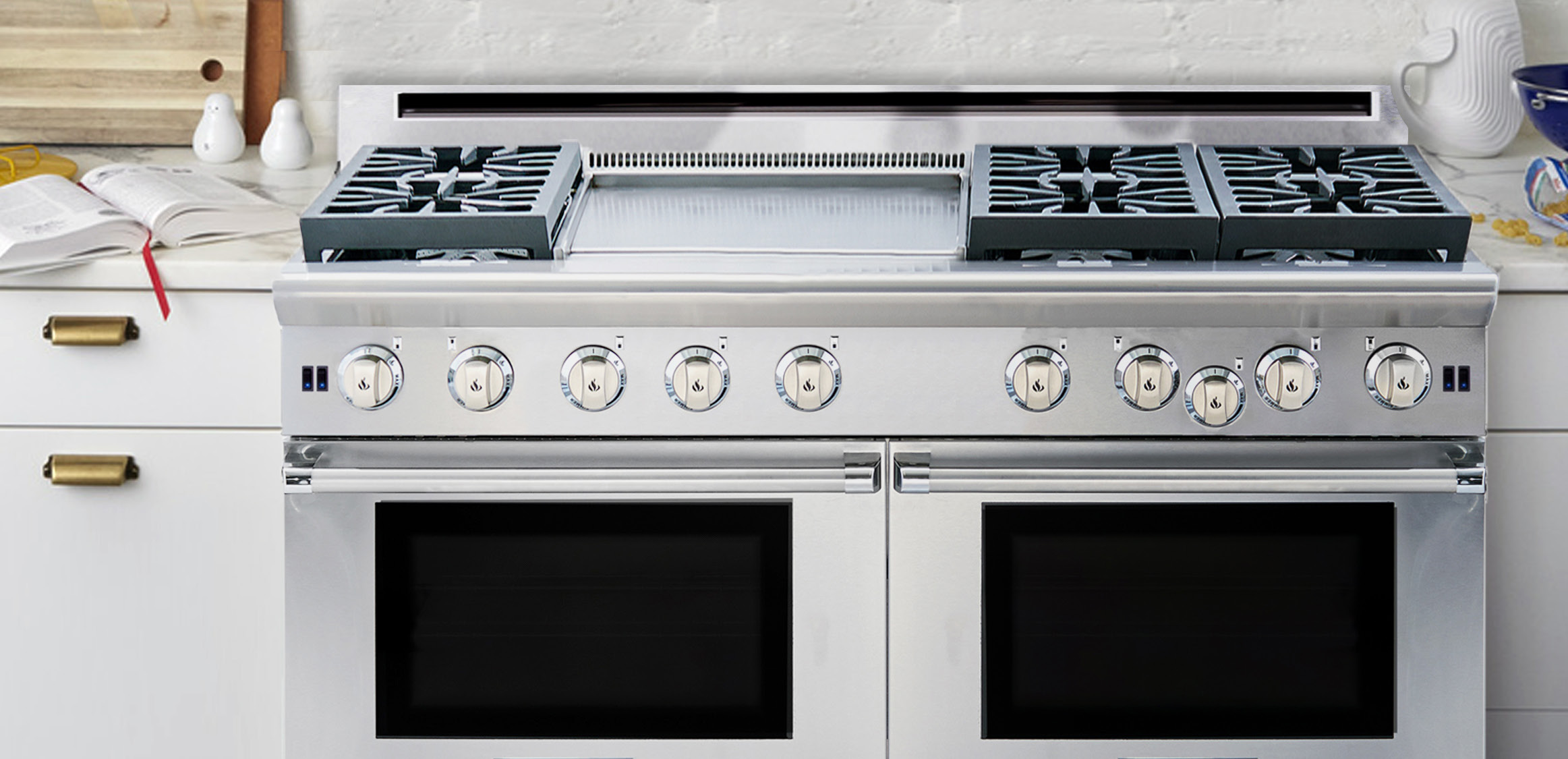

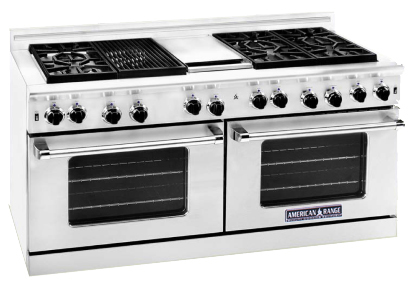

Model: ARR-606GDGRi
60" Wide Residential Range with 6 Burner + Griddle & Grill
Shown with optional 4" stub back.
STANDARD FEATURES
Innovection™ Convection System – utilizing dual convection
motors which provide superior baking performance
Oven Functions
Convection Bake, Dehydrate and Defrost (Both Oven)
Standard Bake and Broil (Both Oven)
(2) 30" ovens; both ovens comprise the industry’s largest oven
cavities at 4.8 cu. ft.
30,000 BTU hidden bake oven burner
15,500 BTU Inconnel® banquet broiler burner produces 1,500°F
broiling temperatures
Commercial grade stainless steel construction and insulation
Commercial grade high temperature porcelain oven interior
Two oven lights
2 oven racks with 6 rack positions
Note: Choose 1" Island Back, 4" stub back or 20" high back with shelf. |
Other Configurations
|
ARR-6062GRi
6 Burner with 24" Grill
|
| |
|
ARR-6062GDi
6 Burner with 24" Griddle
|
|
 |
Designer and custom color options are available for all American Range Residential Equipment. |
